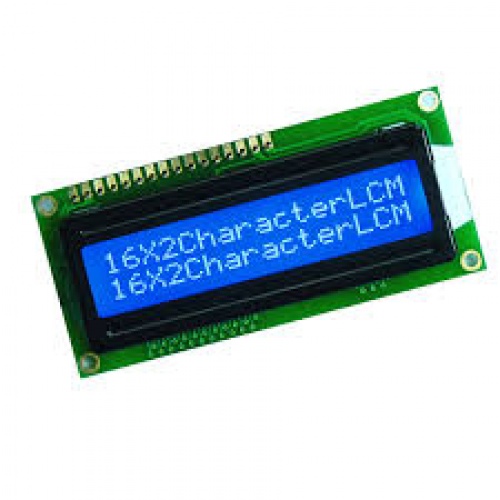

LCD 1602 Display Blue

Rs 125
Qty:
Print
Display Format 16x2 Character
Interface 6800 4-bit Parallel , 6800 8-bit Parallel
Connection Pin Header
Outline Dimension 122.0(W)x44.0(H)x12.9(T)mm
Visual Area 99.00x24.00mm
Active Area 94.84x20.00mm
Character Size 4.84x9.66mm
Dot (Pixel) Size 0.92x1.10mm
Dot (Pixel) Pitch 0.98x1.16mm
IC Package COB
Display Type FFSTN-LCD Black
Backlight Current (Typ) 30mA
Power Supply(Typ) 5V
Supply Current for LCM(Max) 1600uA
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
  • Model: LCD Display 1602
