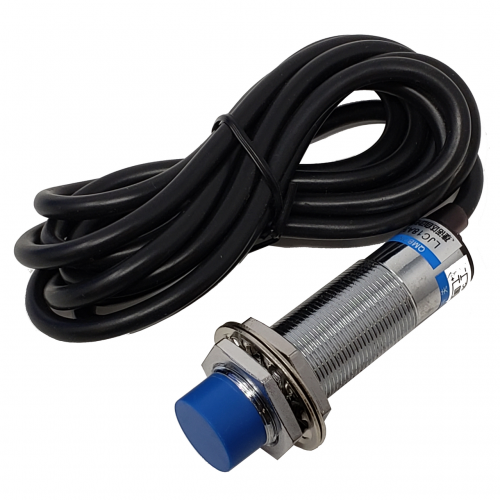

Capacitive Proximity Sensor LJC18A3-H-Z/BX NPN 6-36V

Rs 400

Specification

Shape: diameter 18 mm cylinder
Detection distance: 10 millimeters (mm) Adjustable
Setting distance: 0-10 (mm)
Sensing object: metal and non-metal such as plastic, glass, water, oil; detection distance varies with different electrical conductivity of the sample, dielectric constant, water absorption, volume grounded metal for maximum detection distance.
Operating voltage: 6-36VDC within
Output: NPN normally open three-wire
Output Current: 300 milliamperes (mA)
Output current: three-wire less than 0.8V
