Multi Servo Tester with Indicator Light

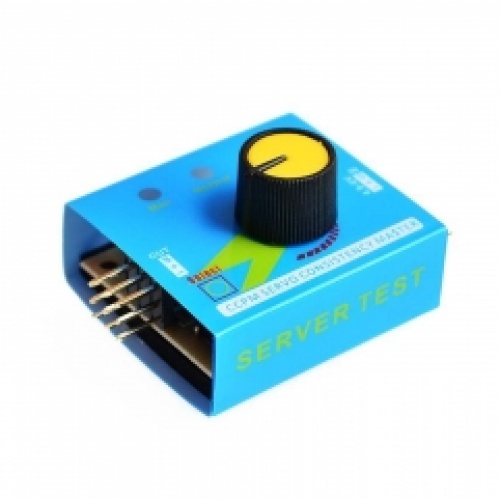

Multi Servo Tester Switch With Indicator Light

This Multi Servo Tester Switch provides you with the simplest method to test your servo system without the need for a transmitter and receiver.  With three modes (selectable by using the push switch) you can easily detect and configure the servo’s virtual spaces, jitter and median, or ESC (Electronic speed control).

You can connect up to three servos simultaneously while running a low power consumption and providing pin-point accuracy / high reliability. The built-in indicator light makes it clearly visible which mode the servo tester is currently running on.

Test selection modes

• AUTO – Window Wiper Mode Makes the servo swing like window wipers in the biggest angle.
• NEUTRAL – Makes the servo go back to the neutral point
• MANUAL – Use the Knob to control speed and check reaction time (manual moving through the different angles of the servo

Technical Specifications:

• Size: 46x32x17mm
• Weight: 8g
• Color: Blue
• Input: DC 4.2 to 6.0V
• Output: ≤15mA (5.0)
• Output signal: 1.5ms±0.5ms
• Adjustment Methods: Manual, Neutral, Automatic.
