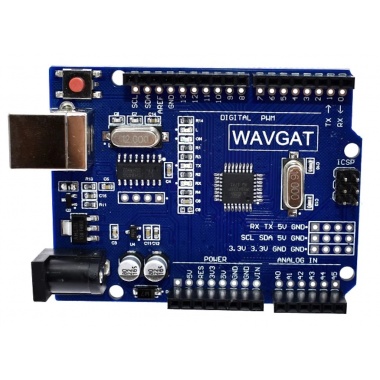

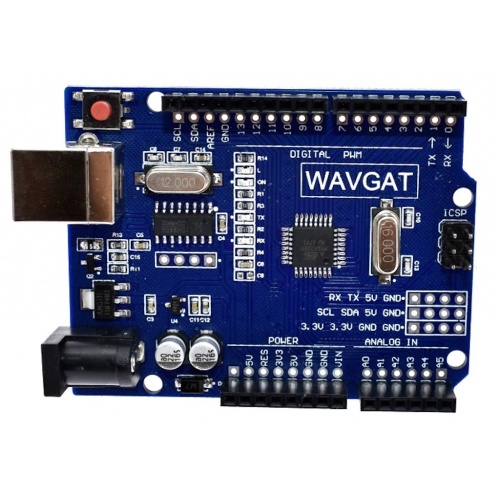

WAVGAT Arduino UNO R3 Clone

Specifications

Operating Voltage: 5V
Input Voltage (Recommended): 7-12V
Power 5V: Provided through USB Type-B Port
Power External: Through 2.1mm barrel jack (7v to 12v DC)
Digital I/O Pins: 14 (of which 6 provide PWM output)
Digital I/O: 3.3v Logic Levels
PWM Digital I/O Pins: 6
Analog Input Pins: 6 (3.3v Logic Levels)
ISP Programming: Available through TX/RX ports
DC Current per I/O Pin: 20 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB
SRAM: 2 KB
EEPROM: 1KB
Clock Speed: 16 Mhz Oscillator

Considerations

ATmega328P devices use 3.3v logic levels, unlike other devices which may use 5v logic levels. For this reason, when interfacing to other devices which will drive your Wavgat Arduino Uno R3 board. A simple voltage divider circuit is all that is required.
