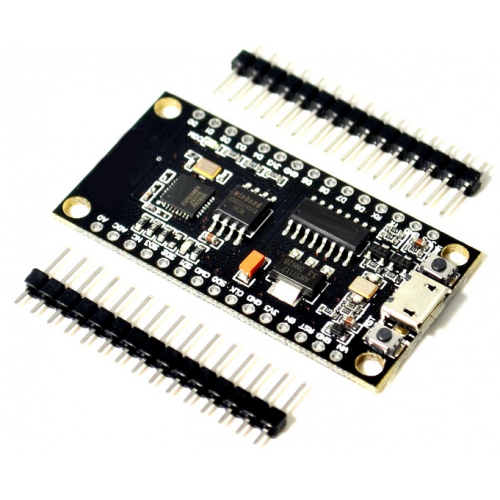

ESP 8266 30 Pins Unsoldered Headers 32mbits HW 628 V1.1
Rs 300
Specifications
Size approx 25.8 x 49.2 mm
WIFI NodeM ESP8266+32Mb, module is based on widely explored esp8266 System on Chip from Expressif.
WIFI NodeM ESP8266+32Mb, compatible for NodeMCU board. We add extra memory size to 32Mb. This better, for make big project with big library. You not need to worry about size of memory.
On board have USB-TTL serial converter CH340G, with Micro-USB socket.
PowerIn for DC 5~9V, to pin VIN.
Pin headers 2.54mm (0.1") 15 pins x 2 lines in set.
Size approx 25.8 x 49.2 mm
WIFI NodeM ESP8266+32Mb, module is based on widely explored esp8266 System on Chip from Expressif.
WIFI NodeM ESP8266+32Mb, compatible for NodeMCU board. We add extra memory size to 32Mb. This better, for make big project with big library. You not need to worry about size of memory.
On board have USB-TTL serial converter CH340G, with Micro-USB socket.
PowerIn for DC 5~9V, to pin VIN.
Pin headers 2.54mm (0.1") 15 pins x 2 lines in set.
It combined features of WIFI accesspoint and station + microcontroller and uses simple LUA based programming language.
WIFI NodeM ESP8266+32Mb, offer:
Arduin0-like hardware IO. And can programming in Arduin0 IDE
Event-driven API for network applicaitons
10 GPIOs D0-D10, PWM functionality, IIC and SPI communicaiton, 1-Wire and ADC A0 etc. all in one board
Wifi networking
- Model: ESP8266 Soldered 30 PIN
