DC-DC Step Down converter

Rs 150
Qty:
Print

Description

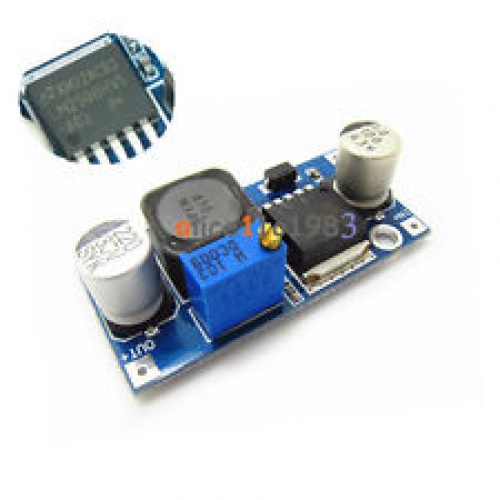

  • This module features the adjustable LM2596 step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation.

    This module has a multi-turn trimpot (potentiometer) that you can use to adjust the LM2596's output voltage. Since the trimpot has 25 turns of adjustment you can easily adjust the output of the module to exactly the voltage you need.

    The simplest way to reduce the voltage of a DC supply voltage is to use a linear voltage regulator (LDO), but linear regulators step down voltage by dissipating the excess energy as heat and do not yield any current step up. on the other hand, can be remarkably efficient and provide a step up in current output. Buck converters are one of the best ways to provide a regulated voltage from a battery since they don't waste near as much energy in the process of dropping the input voltage as a linear regulator would waste.
    Specifications:

    Input Voltage3 to 40 V
    Output Voltage Range1.23 to 37 V
    Max Output Current3 A
    Adjustment25-Turn Trimpot
    Efficiencyup to ~93%
    Switching Frequency150 kHz
    Built-In Protectionthermal shutdown and current limit
    Dimensions:
    Length43.2 mm (1.701")
    Width21 mm (0.827")
    Height14 mm (0.551")
    Weight11.23 g (0.396 oz)
  • Model: LM2596
