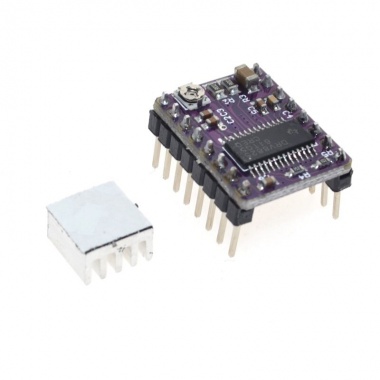

Step stick DRV8825

Rs 125
Qty:
Print

1. A simple steps and direction control interface

2 six different steps resolutions: full step, half step, 1/4-step1/8-step1/16-step, 1/32-step

3 CAN interface directly with 3.3 V and 5 V systems

4 Over-temperature thermal shutdown, overcurrent shutdown, under-voltage lockout

5 short to ground short circuit load protection

6 4 Layer 2 oz copper PCB, in order to improve heat dissipation

7 exposed solder ground below the bottom of the driver IC on the printed circuit board pad

8 module size, pin and interface matching A4988 stepper motor driver operators in many ways

9 adjustable current control lets you set a potentiometer, which lets you use the stepper motor's rated voltage or more, in order to achieve a higher rate of maximum output current step

10 Intelligent chopping control automatically selects the correct current decay mode (fast decay or slow decay)

11 Maximum 45 V supply voltage

  • Model: Purple DRV8825
