MT3608 2A DC-DC Step Up Power Module
The MT3608 2A Max DC-DC Step Up Power Module Booster Power Module is a low-cost module that can step-up a 2 to 24V input voltage up to a 5 to 28V output at up to 2A peek.
DC-DC boost converters step up the input voltage to a higher voltage while also stepping down the available current since the module can’t output more power than its inputs.
This boost converter is adjustable and capable of outputting a voltage in the range of 5.0 to 28V at a continuous current of up to 1.5A depending on input/output voltage settings with 1A available with most settings.
Since it is a boost converter, the input voltage must be lower than the output voltage.
The device is able to use low ESR bulk ceramic capacitors rather than electrolytic caps which avoids long-term aging concerns and contributes to the compact packaging.
The MT3608 converter IC has over-current and thermal limiting features built-in to safely shut the device down if driven too hard.
Voltage Adjustment:
The module has a single-turn potentiometer for adjustment of the output voltage.
Turning the pot CW decreases the output voltage while turning it CCW increases the output voltage.
The upper limit of the adjustment range will depend on the input voltage and the load. With a 9V input for instance, at 1A, the upper voltage limit will be approximately 20V.
Module Connections
These are compact boards with 4 solder pads for making connections.
- VIN+ = Input Voltage
- VIN- = Ground
- VOUT+ = Output Voltage
- VOUT- = Ground. Connected to VIN- on the module.
Features:
1, Transmission signal processing control chip RCWL-9196
2, Wide operating voltage range: 4.0-28.0V
3, Compared with the traditional infrared feeling PIR, with the penetrating detection capability
4, Block time, distance adjustable
5, Output 3.3V power supply
6, Board size: 35.9mmx17.3mm
Application Design Note:
1, the sensing face in front of the gold without any shelter.
2, front and rear sensing surface space to set aside more than 1CM
3, the module carrier plane and install as flat line
4, a certain application of effective detection area
5, the component side of the module is positive sensing face, the opposite is negative sensing surface. Negative sensing surface sensing less effective
6, microwave modules can not be large-scale applications in the same area, otherwise there will be mutual interference. Between single individuals over distance greater than 1M
WS2812 full color LED
Chip: WS2812B (built in LED)
LED: 5050 package RGB full color highlight
USB Board CH340 Expansion for ESP32 CAM
Description:
ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters,and power management module. The entire solution takes up the least amount of printed circuit board area.This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology,power and RF properties best, which is safe, reliable, and scalable to a variety of applications.
30 PIN with CP 2102 or CH9102
Size 51mm x 38mm
Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
Low-power dual-core 32-bit CPU for application processors
Up to 240MHz, up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras with built-in flash
Support for images WiFI upload
Support TF card
Support multiple sleep modes
Embedded Lwip and Free RTOS
Support STA/AP/STA+AP working mode
Support Smart Config/Air Kiss One-click distribution network
Support for serial local upgrade and remote firmware upgrade (FOTA)
DFPlayer Mini is a compact and inexpensive MP3 module can be connected directly to the speaker. Module with battery power supply, speaker, keypad can be used alone, or through the serial port control, as the for Arduino UNO or any microcontroller with a serial port module. The module itself perfectly integrated hardware decode MP3, WAV, WMA's. While the software supports TF card driver to support FAT16, FAT32 file system. Can be done by simple serial command plays the specified music, as well as how to play music and other functions, without tedious low-level, easy to use, stable and reliable.
Technical Specifications
1, supports sampling rates (KHz): 8 / 11.025 / 12/16 / 22.05 / 24/32 / 44.1 / 48
2,24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB
3, fully supports FAT16, FAT32 file system, maximum support 32G TF card, support U disk to 32G, 64M bytes of NORFLASH
4, a variety of control modes are available. IO control mode, serial mode, AD key control mode
5, the broadcast language spots feature, you can pause the background music being played. Advertising finished playing back background sound to continue playing
6, the audio data is sorted by folder, supports up to 100 folders, folders can assign every 255 Tracks
7,30 level adjustable volume, adjustable EQ 6
Application
1, car navigation voice broadcast
2, road transport inspectors, toll voice prompts
3, train station, bus station voice prompts security check
4, electric power, telecommunications, financial operating room voice prompts
5, the vehicle into or out of the channel to verify the voice prompts
6, border control channel voice prompts **
7, multi-channel voice alarm or voice guidance equipment operation
8, electric sightseeing bus safety with voice notices
9, electrical and mechanical equipment failure alarm
10, fire alarm voice prompts
11, automatic broadcasting equipment, regular broadcast
1PCS*TF Card U Disk Mini MP3 Player Audio Voice Module For Arduino DFPlay Min Board
Specification
Working voltage: 2.3V-5.5V.
Working temperature range: -40 ~ + 105 °
Onboard 25MHZ (accuracy of 50ppm) active crystal, stepping accuracy 0.1HZ.
On-board high-speed amplifiers 300M and also has a low-pass filtering.
Two-channel output signal, an original signal output, an amplified output signal 5 times, 50Ohm output impedance.
CH340G
Microcontroller:ATmega2560
Operating Voltage:5V
Input Voltage (recommended):7-12V
Input Voltage (limits):6-20V
Digital I/O Pins:54 (of which 15 provide PWM output)
Analog Input Pins:16
DC Current per I/O Pin:40 mA
DC Current for 3.3V Pin:50 mA
Flash Memory:256 KB of which 8 KB used by bootloader
SRAM:8 KB
EEPROM:4 KB
Clock Speed:16 MHz
Specifications :
- Nodemcu Lolin V3 ESP8266 development board is equipped with the powerful ESP8266 microcontroller (ESP-12F) with 802.11 b / g / n WLAN and integrated 20dBm antenna. This development board consists of: flash memory chip is 25Q32 4M (32mbit) and serial chip is upgraded CH340 chip.
- Compatibility: This WiFi development board enables you comfortable prototyping by simple programming via Lua-Script and breadboard-optimised construction (27.5 mm pin spacing).

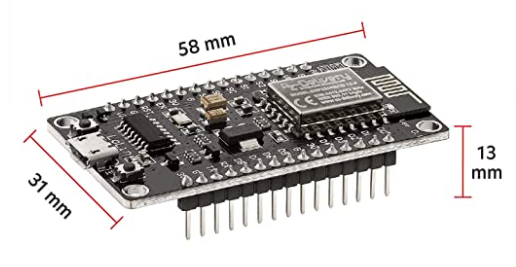

- Compact and Versatile: the board can be used for temperature and humidity monitors in home automation projects. Its dimensions (L 58 mm x W 31 mm x H 13 mm) make it a perfectly designed compact board.
Wireless communication module, the maximum transmission rate of 500 KBPS, open transmission distance up to 300-300 meters, has the functions such as wireless sensor, achieve - 110 BBM sensitivity, high reliability, can be widely used in short distance wireless communication.
| PIN | Description | PIN | Description |
| 1 | GND | 5 | SCK |
| 2 | VCC | 6 | MOSI |
| 3 | GD00/DATA | 7 | MISO |
| 4 | CSN | 8 | GD02 |
28BYJ-48 engine (with gear)
- torque at the gearbox output: 0.3 kg * cm (0.03 Nm)
- gear ratio: 64: 1
- rated voltage: 5V
- current consumption per coil: 100 mA
- coil resistance: 50Ω
- pins: five wires
- shaft diameter: 5mm with cuts
- weight: 35g
- distance between mounting holes: 35mm
- dimensions: ϕ28 x 19mm (without shaft)
- Include driver 28BYJ-48
Overview
The Raspberry Pi is a powerful SBC, yet it can't provide PWM output. Now this powerful HAT drives Servo motor for you.
Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- I2C controlled, using only 2 pins
- Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
- Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
- Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
- Reserved I2C control pins, allows to work with other control boards
- Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)
Specs
- Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
- Servo voltage: 5V
- Logic voltage: 3.3V
- Driver: PCA9685
- Control interface: I2C
- Dimension: 65mm x 30mm
- Mounting hole size: 3.0mm
